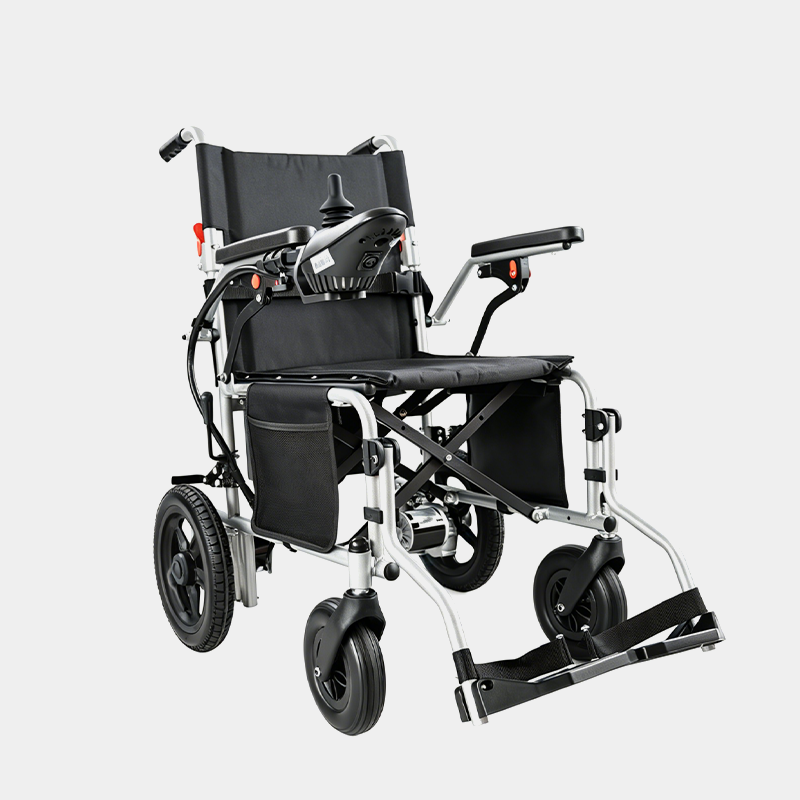

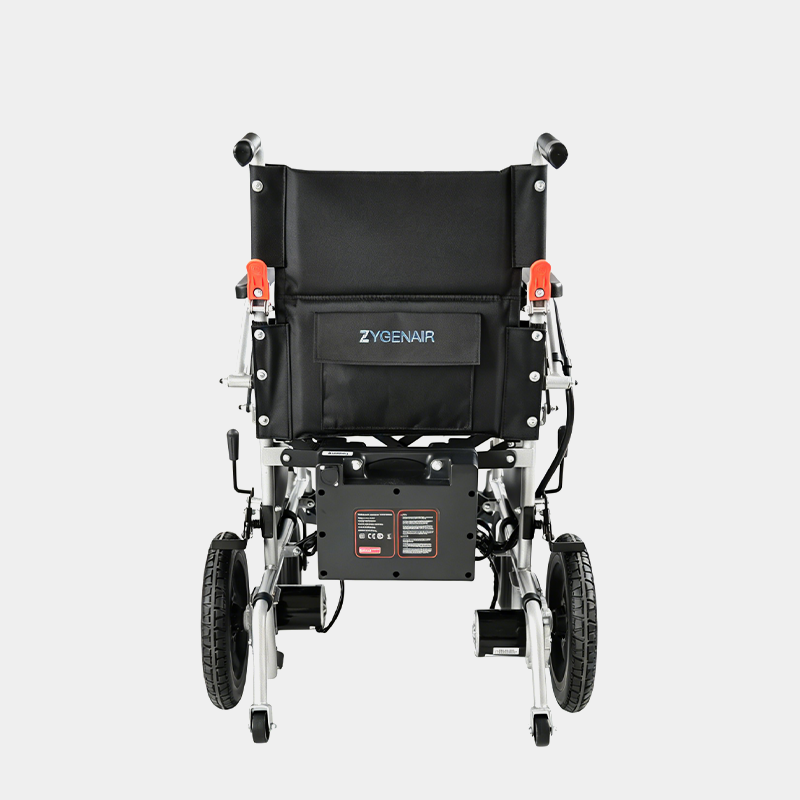

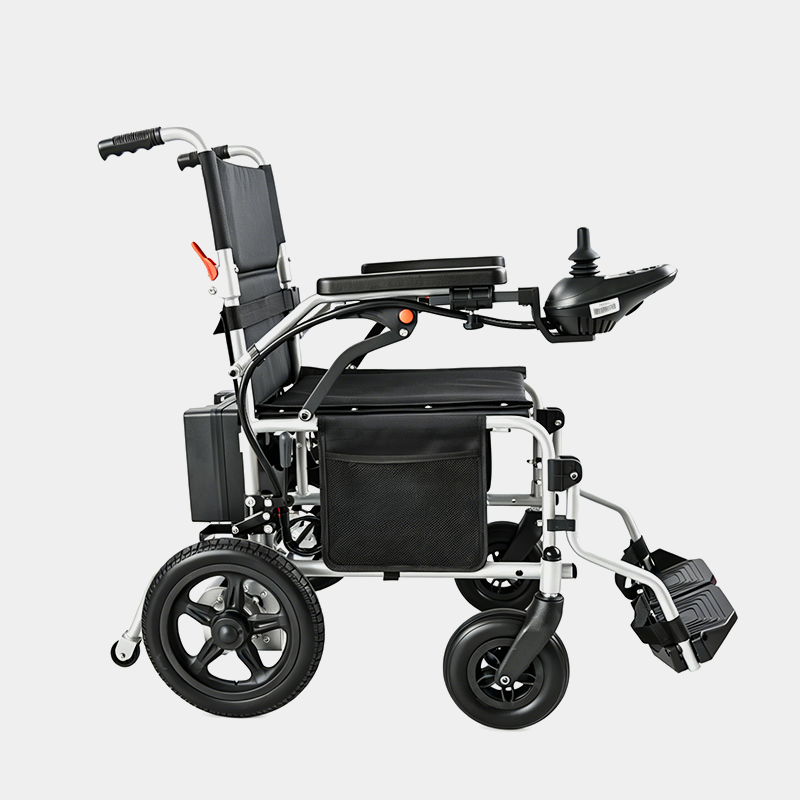

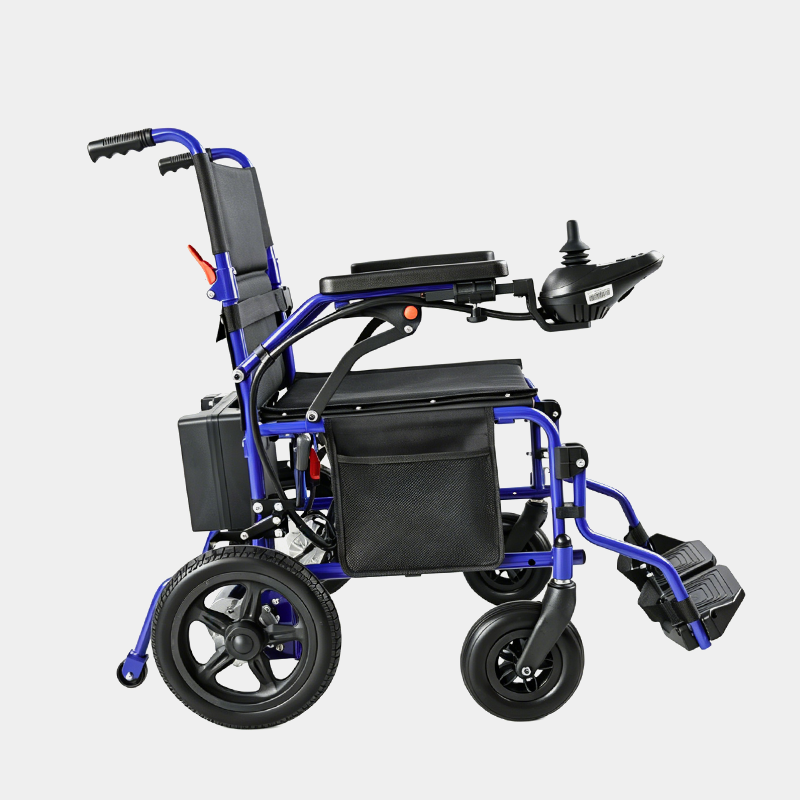

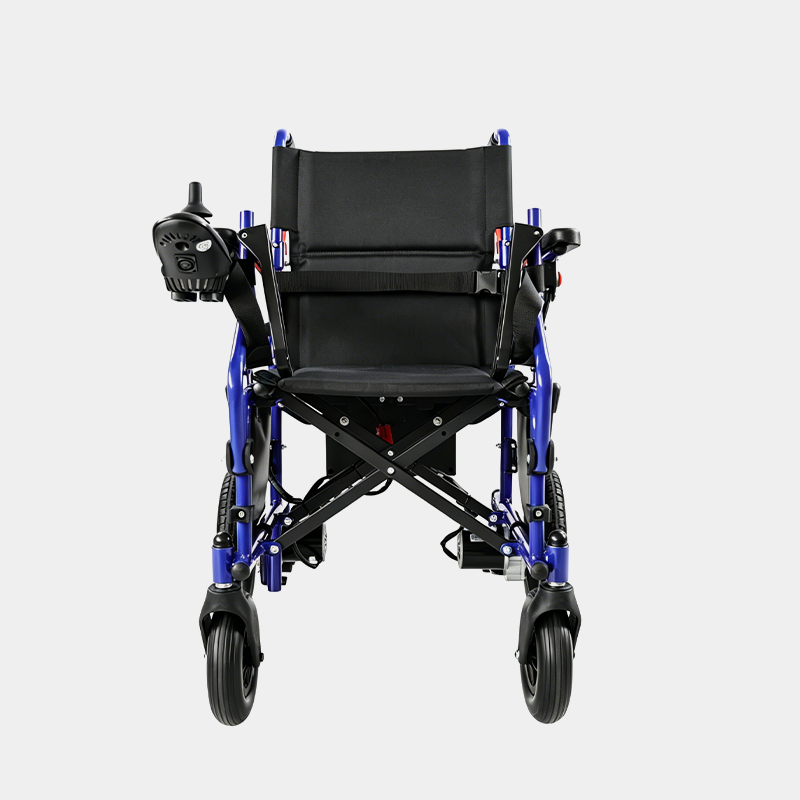

Zygenair F01Y Lightweight foldable Electric Wheelchair
- Lightweight Steel Frame
- Removable Lithium Battery
- 24V 250W Dual Brush motors
- Portable & Fully Foldable
- Built-In Shock Absorption Springs
- Multiple Size Options
Choose options
Product Type: Electric Wheelchair
Model: YHW001‑F

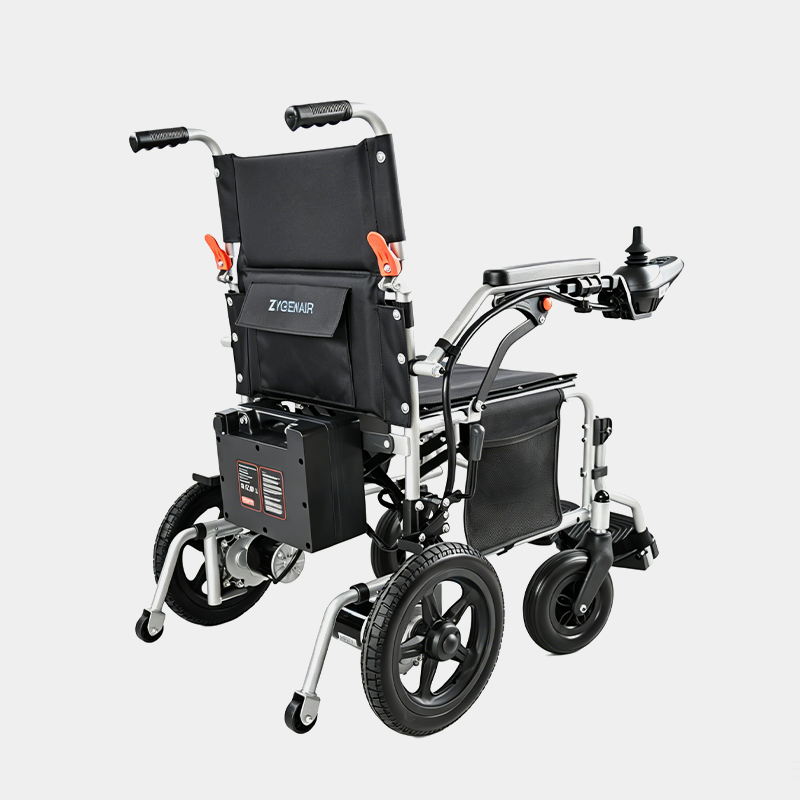

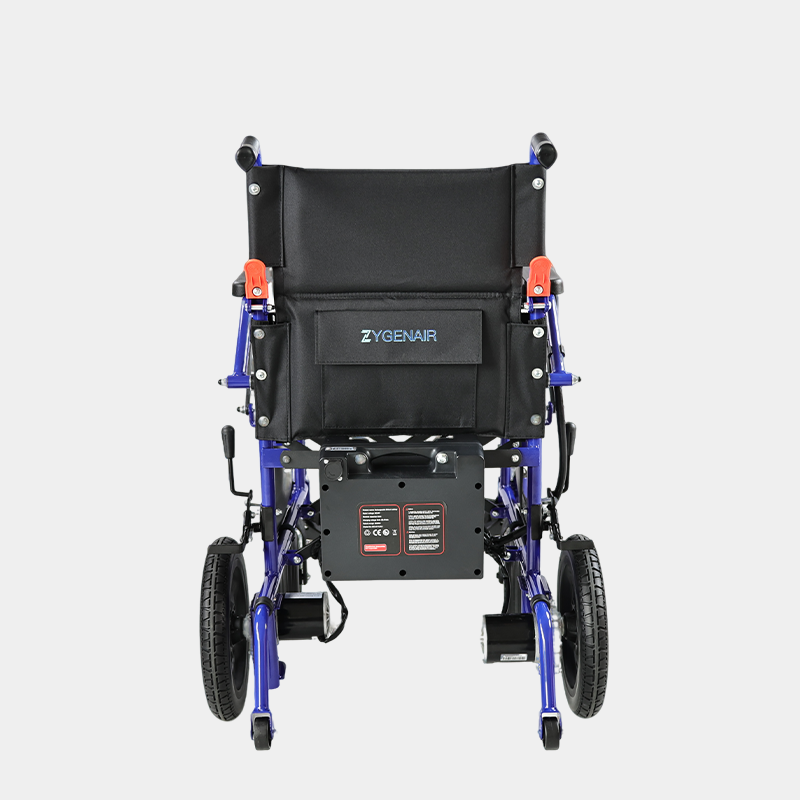

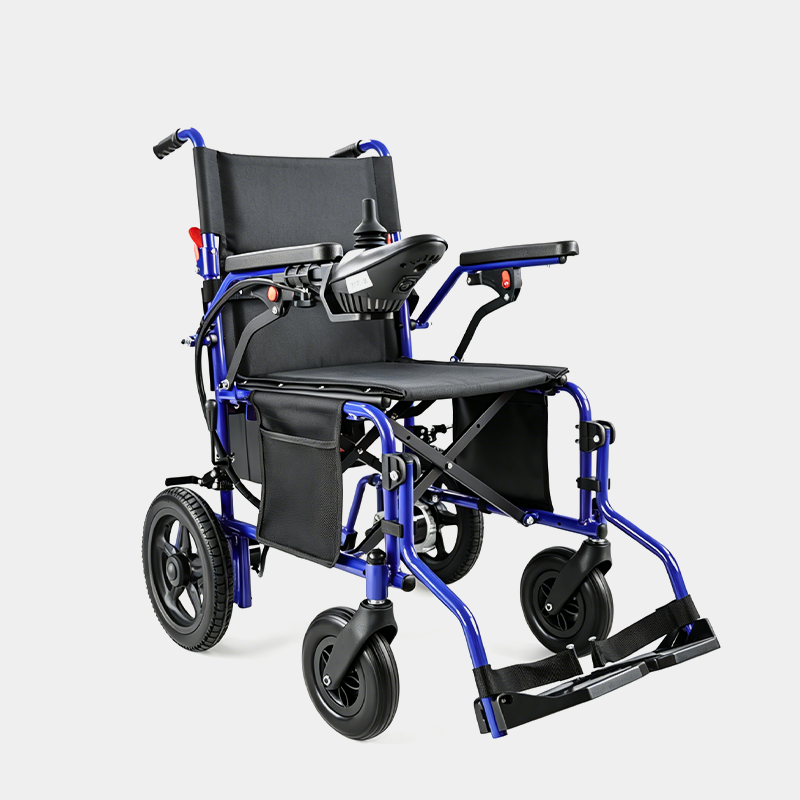

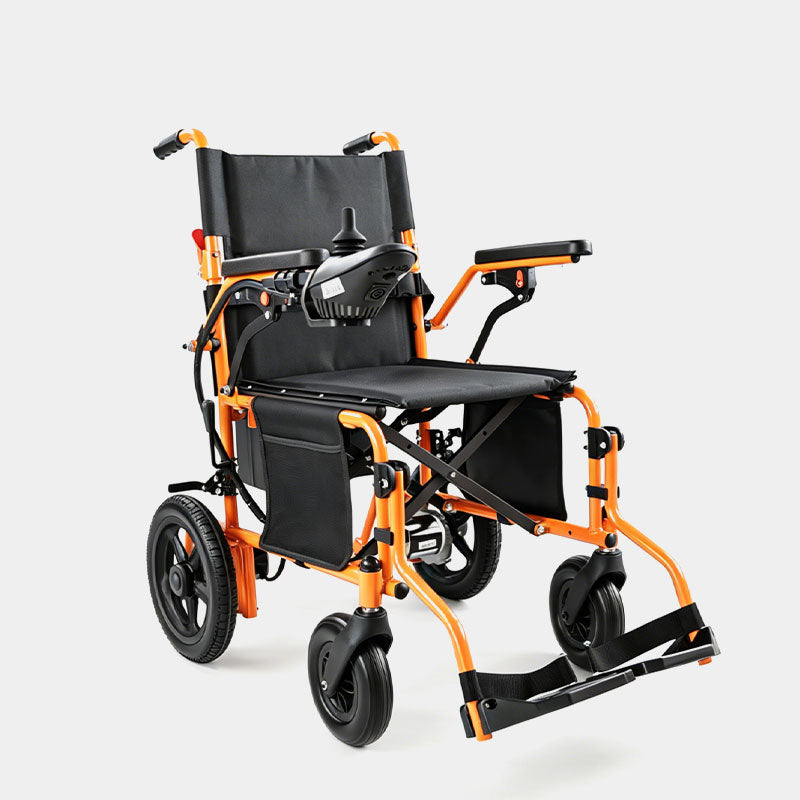

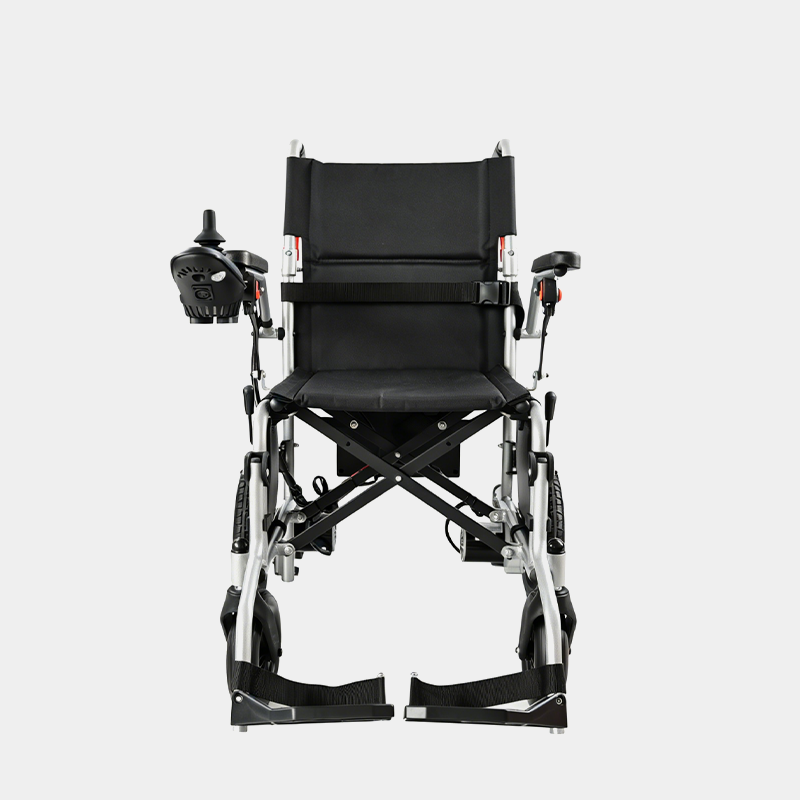

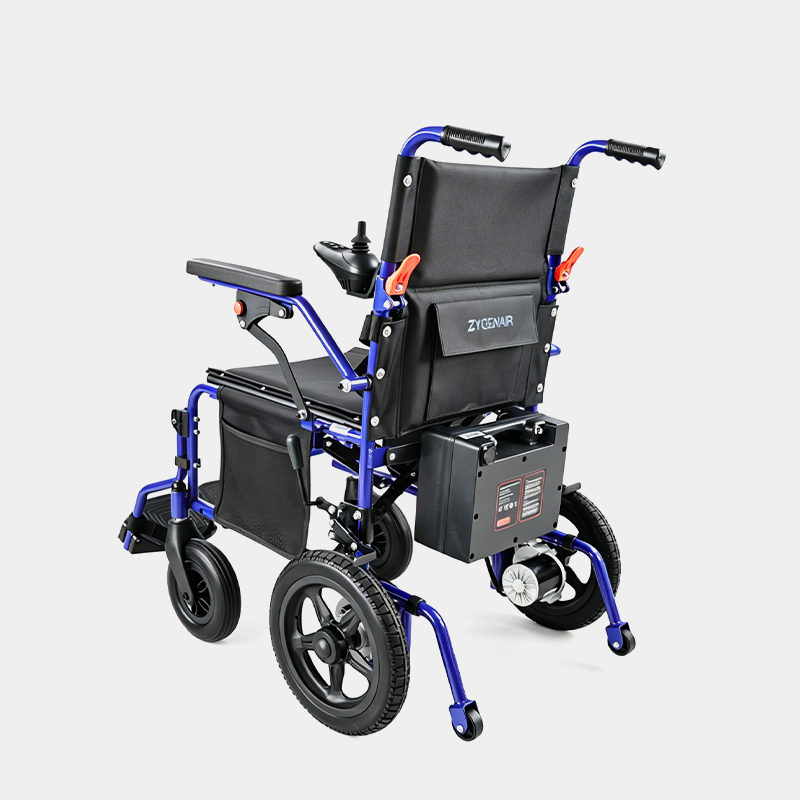

Color: Orange / Blue / Silver
Material: Carbon Steel
Front Wheel: 8 inch PU solid tire, plastic hub
Rear Wheel: 12 inch PU solid tire, plastic hub
Brake System: Electronic brake + Manual parking brake
Motor: Dual 250W 24V Brushed motors
Battery: Single 24V 12Ah ternary lithium battery
Full Charge Time: 4‑6 h
Over‑Charge Protection: Yes
Over‑Discharge Protection: Yes
Temperature Protection: Charge 0‑45℃ / Discharge ‑20‑60℃
Detachable Design: Yes
Lighting System: USB light
Horn: Yes
USB Charging Port: Yes
Dimension Parameters
Overall Dimension
Size S: 102 × 65.5 × 90 cm (40.2 × 25.8 × 35.4 in)
Size Plus: 102 × 70.5 × 90 cm (40.2 × 27.8 × 35.4 in)
Size DPlus: 102 × 75.5 × 90 cm (40.2 × 29.7 × 35.4 in)
Folded Dimension
Size 16 in: 73 × 34.5 × 72 cm (28.7 × 13.6 × 28.4 in)
Size 18 in: 73 × 34.5 × 75 cm (28.7 × 13.6 × 29.5 in)
Size 20 in: 73 × 34.5 × 78 cm (28.7 × 13.6 × 30.7 in)
Net Weight (16/18/20 in): 52.9/ 55.1 / 57.32 lbs (24 / 25 / 26 kg)
Gross Weight (16/18/20 in): 59.52/ 61.73 / 63.93 lbs (27 / 28 / 29 kg)
Load Capacity: 265 lbs (120 kg)
Range: 9.32‑12.43 miles (15‑20 km)
Max Speed: 3.73 mph (6 km/h)
Seat (Width/Height/Depth)
Size 16 in: 40 × 50.5 × 44 cm (15.7 × 19.8 × 17.5 in)
Size 18 in: 45 × 50.5 × 44 cm (17.7 × 19.8 × 17.5 in)
Size 20 in: 50 × 50.5 × 44 cm (19.7 × 19.8 × 17.5 in)
Backrest Height: 36 cm (14.2 in)
Note: Some specifications are manually measured. Actual dimensions may have slight variations. Please refer to the actual product for exact measurements. Maximum range and top speed may vary based on user weight, terrain inclination, ambient temperature, and battery maintenance.
Orders shipped within 1–2 Business Days (Monday – Friday).
Estimated transit time: 4–10 days.
1-Year Warranty
Free shipping on all orders. Free return shipping for eligible returns. Please refer to our Return Policy for details.
size
Multiple Seat Width
20" Extra Wider for Adults Seniors
- 16in / 18in seat widths, fits various users.
- Available in 3 color options to match your style.
zygenair
Dual brushed motors
Featuring two independent 24V 250W brushed motors with 500W combined output, this device delivers responsive acceleration, stable power and great durability.
Material
Light Carbon Steel
Premium lightweight carbon steel boasts low-carbon construction, great flexibility and sturdy toughness. Easy to bend, weld and durable, ideal for mobility aids and lightweight support frames.
Daily
Offset Motors
Designed with uniquely offset small motors, the wheelchair folds smoothly and compactly. Lightweight and easy to carry, its reliable power suits all daily travel mobility needs.
Limited time only
5% OFF Your First Order
New customers save 5% store‑wide on premium electric wheelchairs. Register today to claim your exclusive discount.

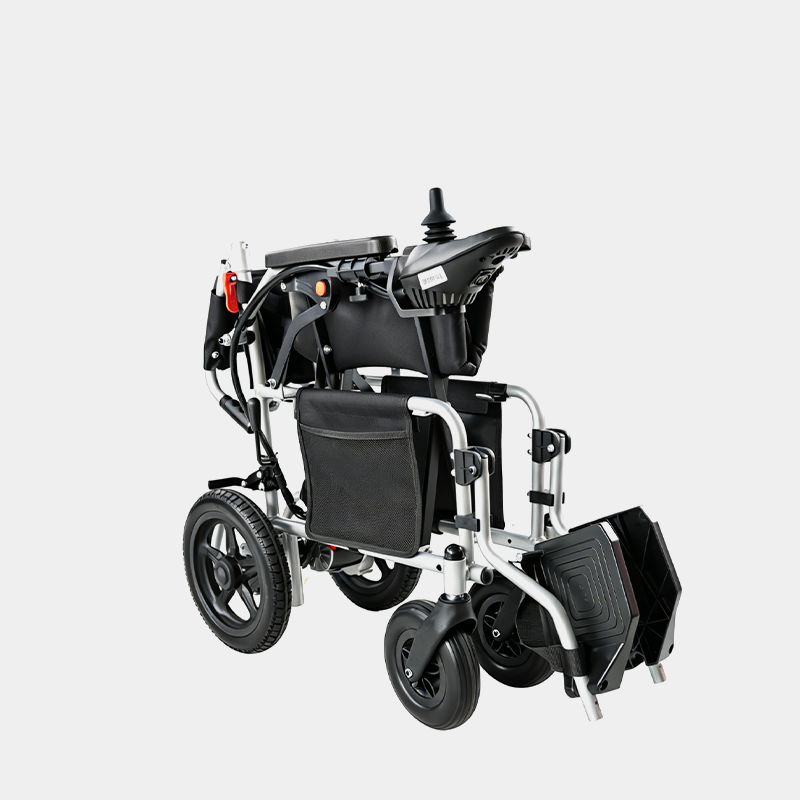

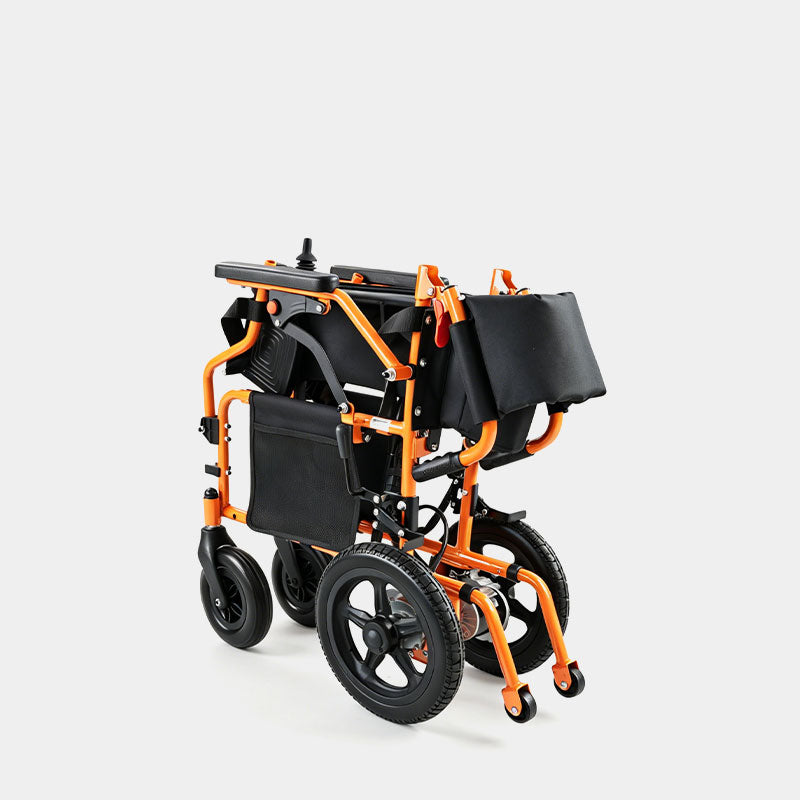

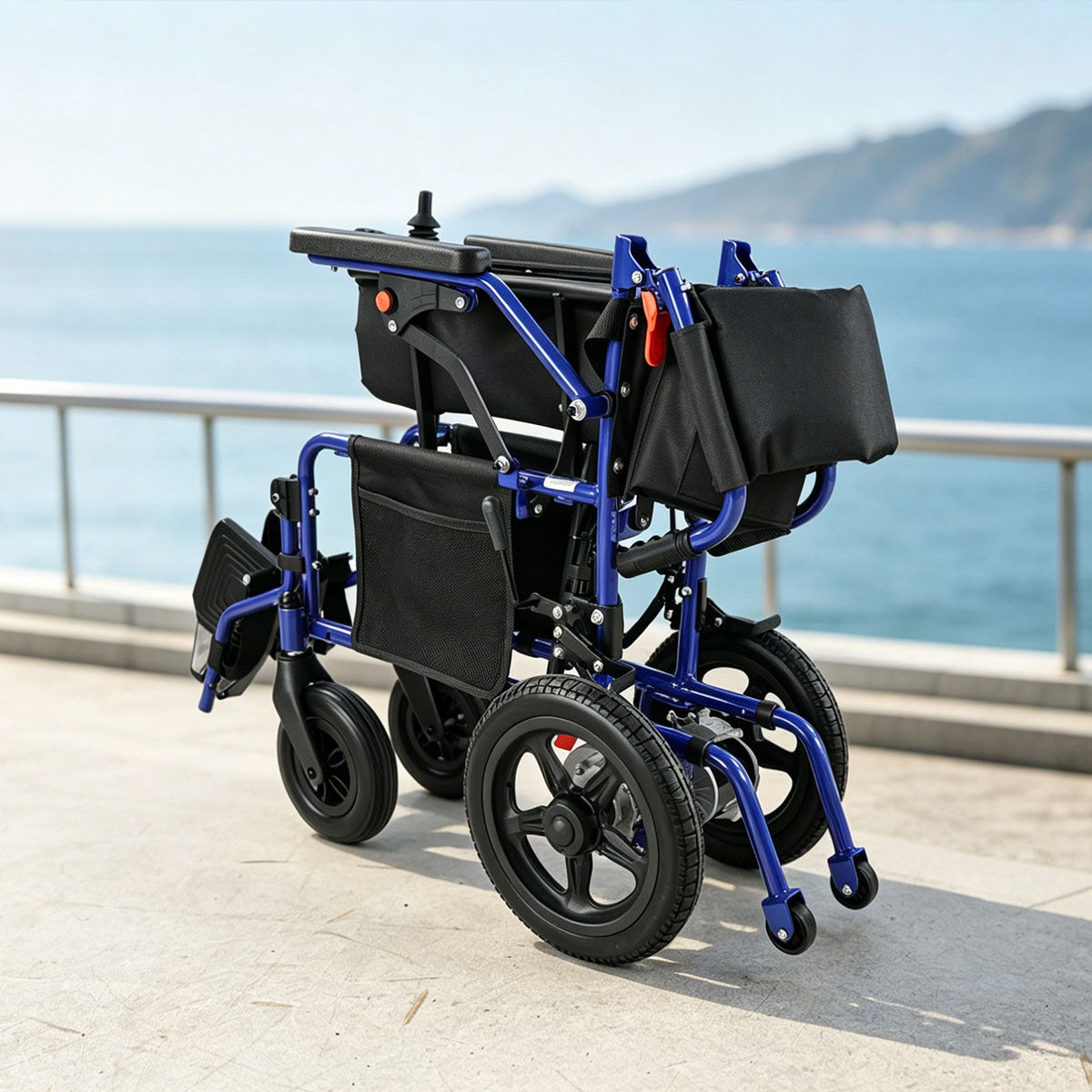

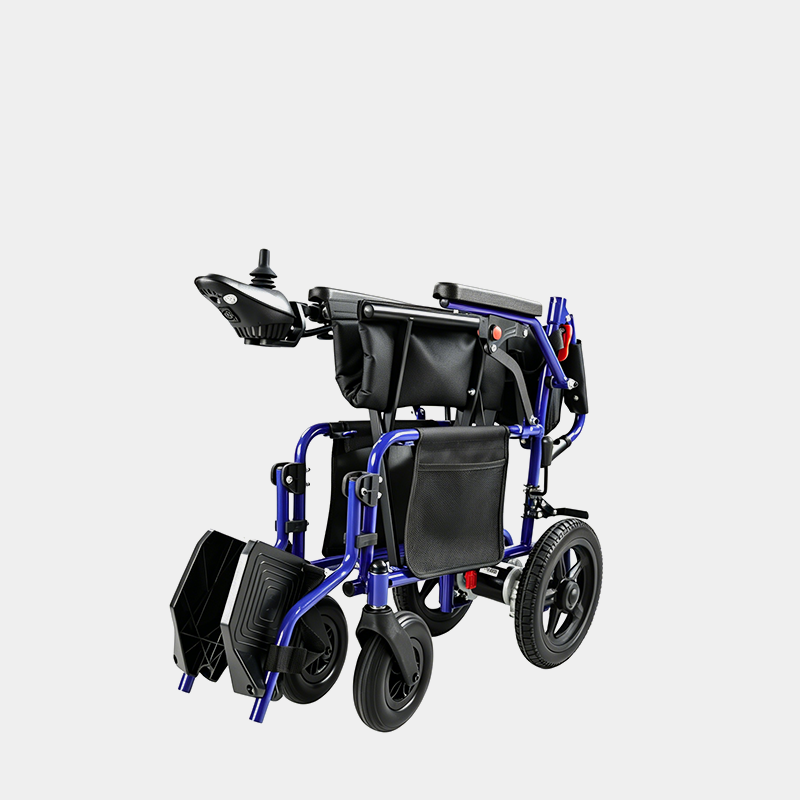

FOLDED VS UNFOLDED
Before
After
Brand Name : ZygenAir
Item Model Number : YHW001-F
Warranty Period : 1 Year
Assembly Required : Yes
Manufacturer : Zhejiang Youha Medical Technology Co., Ltd
Date First Available : 07/15/2025
This electric wheelchair is 510(k)-cleared. Manufacturer holds valid FDA facility registration and device listing. 510(k) clearance ≠ FDA approval. Intended for mobility assistance.
Disclaimer: This device is built exclusively to assist with mobility. It is not intended for any health-related intervention. We recommend consulting a qualified professional before operating this device. Any modification or alteration to the device is prohibited.
